Q-25-17-240 (single-phase)
Single phase for 1.7m landscape module pitch
Connector pitch is 2.0m
The Enphase IQ Cable and accessories are part of the seventh generation Enphase IQ System.
These products provide simplicity, reliability, and faster installation times.
Enphase IQ Cable
- Two-wire, double-insulated Enphase IQ Cable is 50% lighter than the previous generation Enphase cable
- New cable numbering and plug and play connectors speed up installation and simplify wire management
- Link connectors eliminate cable waste
Field-Wirable Connectors
- Easily connect IQ cables on the roof without complex wiring
- Make connections from any open connector and center feed any section of cable within branch limits
- Available in male and female connector types

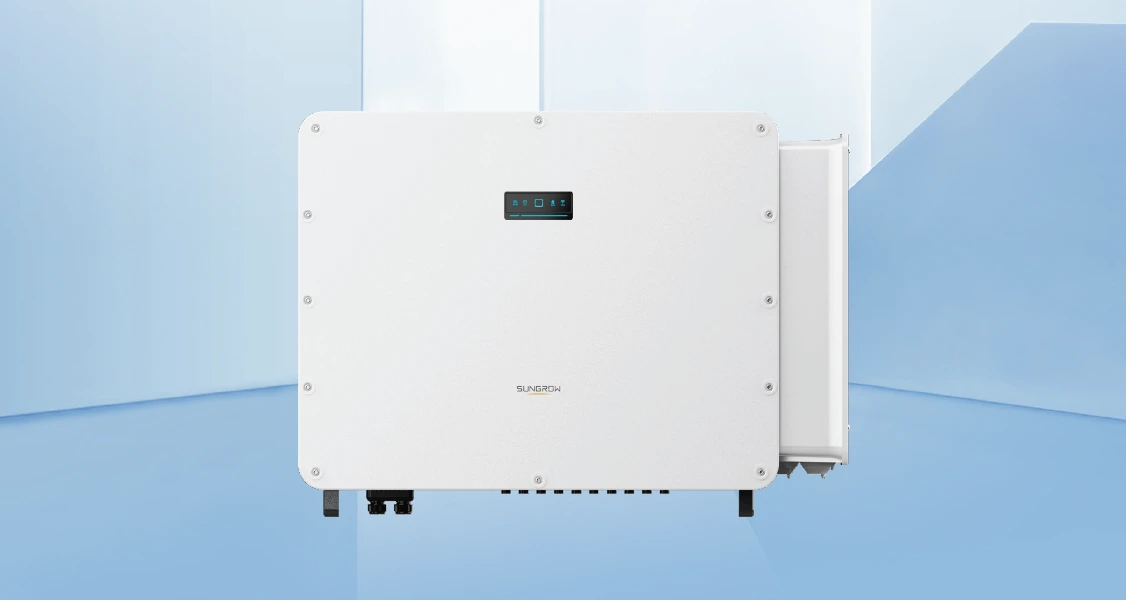

Sungrow 110kW Three Phase Hybrid Inverter
SKU: SH110CX
The Sungrow 110kW Three Phase Hybrid Inverter (SKU: SH110CX) represents a major breakthrough in commercial and industrial (C&I) energy storage solutions. Engineered for both grid-connected and off-grid installations, this high-capacity hybrid inverter combines PV solar generation, energy storage battery management, and grid interaction into a single powerful platform. Equipped with 10 MPPT trackers, up to 200% PV array oversizing, and an IP66 weatherproof rating with C5 anti-corrosion protection, the SH110CX offers maximum solar harvesting and reliable power backup for large commercial facilities, industrial sites, and microgrid applications.
Key Features: Sungrow 110kW Three Phase Hybrid Inverter
High Solar Yield & Multi-MPPT: Designed with 10 independent MPPT trackers and 40A max input per MPPT, accommodating modern high-power bifacial solar modules.
Massive PV Oversizing: Supports up to 200% DC PV array oversizing to maximize generation during low-light hours.
Exceptional Peak Backup Power: Delivers up to 165kW peak backup output (for 10 seconds) and 100% three-phase unbalanced load output during power outages.
PID Zero Technology: Features built-in, industry-exclusive 24-hour anti-PID protection to prevent degradation and maintain long-term module performance.
Advanced Safety Integration: Equipped with AFCI 3.0 intelligent DC arc interruption, string-level protection, and Type I+II DC / Type II AC surge protection (SPD).
High Scalability: Supports parallel operation of up to 24 inverters via Logger1000 and pairs seamlessly with commercial high-voltage battery storage systems.
Harsh Environment Ready: Heavy-duty IP66 ingress protection and C5 anti-corrosion rating ensure durable outdoor operation.
Basic Specs: Sungrow 110kW Three Phase Hybrid Inverter
Rated AC Output Power: 110 kW / 110 kVA
Max. AC Output Current: 158.8 A
Nominal AC Voltage: 3 / N / PE, 220 V / 380 V, 230 V / 400 V
Max. PV Input Voltage: 1100 V
MPPT Operating Voltage Range: 180 V - 1000 V
No. of MPPT Trackers / Strings per MPPT: 10 MPPTs / 2 Strings per MPPT
Max. Efficiency: 98.5%
Grid Connection / Backup Switching Time: less than or equal to 10 ms
Battery Voltage Range: 129 V - 880 V
Dimensions (W x H x D): 1095 x 795 x 360 mm
Weight: 123 kg
Protection Class & Corrosion Level: IP66 / C5
Standard Warranty: 10 Years
What’s Included: Sungrow 110kW Three Phase Hybrid Inverter
Sungrow 110kW Three Phase Hybrid Inverter (Model: SH110CX)
Built-in DC Switch and Protective DC Wiring Cover
Heavy-Duty Wall Mounting Bracket
Standard MC4 Connectors & OT/DT AC Terminals
Wireless Communication Module (WLAN / Bluetooth / 4G support)
User Manual & Installation Guide
Why Choose AC Solar Warehouse for Sungrow 110kW Three Phase Hybrid Inverter?
When sourcing the Sungrow 110kW Three Phase Hybrid Inverter through AC Solar Warehouse, you benefit from industry-leading commercial solar expertise, guaranteed authentic equipment, and dedicated technical service. AC Solar Warehouse offers end-to-end support for commercial and industrial installers—from pre-sale system design and string sizing verification to post-commissioning assistance. With stock availability and robust logistics networks, AC Solar Warehouse ensures your commercial energy storage projects are executed efficiently and backed by trusted industry professionals.
