AC Board - Breaker Board

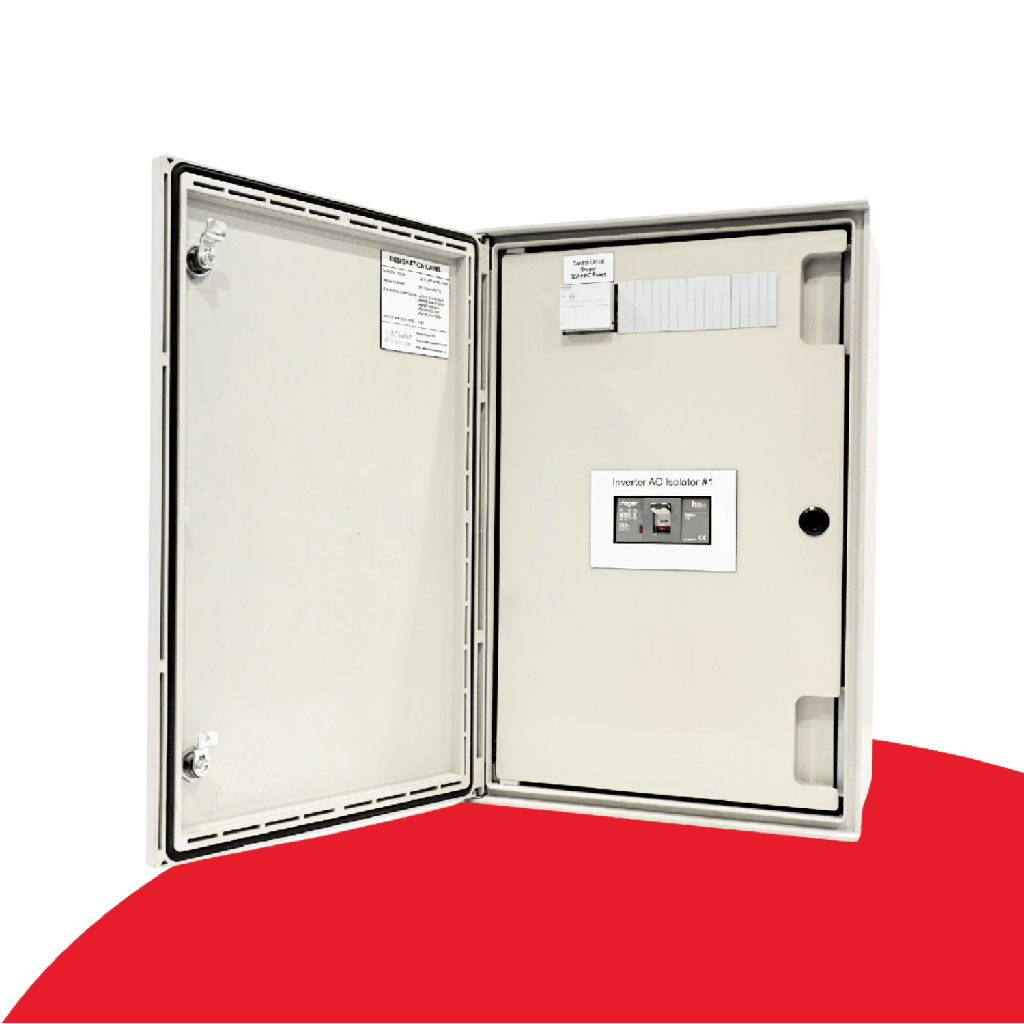

This switchboard houses an MCCB with earth and neutral bars, in a GRP (IP66, fire & UV resistant) lockable enclosure.
It can be used as an inverter adjacent isolator (comes with DC system label kit), or even just when a cable size change is required.
It has an internal escutcheon and a fused DIN rail for monitoring equipment, or a GSD for QLD installs, can be added.
Compliant to all relevant standards including AS 61439 with routine verification & QA.
Solar Switchboard - Breaker Board
This pre-assembled switchboard features an MCCB with earth and neutral bars, housed in a durable GRP enclosure rated IP66. The enclosure is fire resistant, UV stable, and lockable, making it suitable for indoor or outdoor installations.
It can be used as an inverter-adjacent isolator and includes a DC system label kit. It’s also a practical solution where a cable size change is required.
The switchboard includes an internal escutcheon and a fused DIN rail, allowing easy integration of monitoring equipment. A GSD for Queensland installations can also be added if required.
Manufactured and tested to meet all relevant Australian standards, including AS 61439, with routine verification and quality assurance completed.
AC Board - Breaker Board
The AC Board - Breaker Board is a high-durability electrical distribution board. It is built with a Glass Reinforced Polyester (GRP) enclosure and features stainless steel hinges and brackets.
Technical Specifications
- Voltage: 415 VAC L-L, 50 Hz.
- Protection Rating: IP66 (Dust and water protection) and IK10 (Impact resistance).
- Durability: 25-year UV rating and flame retardant material.
- Temperature: Rated for 40°C ambient temperature.
- Security: Key lockable door.
- Weight: Approximately 13kg.
- Mounting: Wall mount bracket included.
- Standards: Complies with AS/NZS 61439.1:2016, AS/NZS 3000:2018, and AS/NZS 4777.1:2024.
Custom Configurations
The board can be configured with the following options:
Main Switch (Hager MCCB)
- 100A Option: Adjustable to 100A, 80A, or 63A.
- 160A Option: Adjustable to 160A, 125A, or 100A.
- 250A Option: Adjustable to 250A, 200A, or 160A.
Enclosure Sizes
- Size A5: 500H x 350W x 200D
- Size A6: 600H x 400W x 200D
Optional Add-ons
- Grid Supply Device (GSD): 1 x GSD for inverter-adjacent isolators (required for QLD).
- Fused DIN Rail: Added for mounting and protecting monitoring equipment.
Connections and Wiring
- Entry: Cable entry points are available on all sides.
- Terminals: M8 Lugs for main connections.
- Bars: Includes 6-way brass Earth and Neutral bars with 2x M8 lugs
