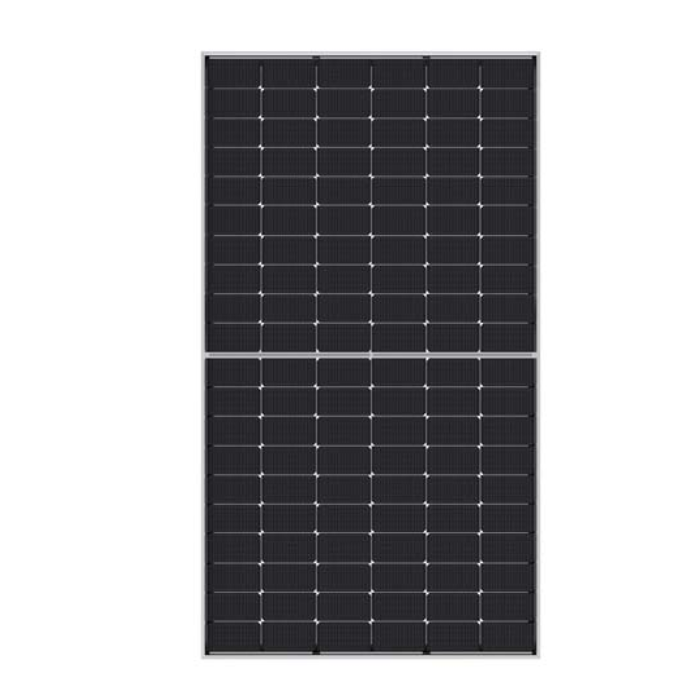

    Jinko 475W Tiger Neo N-type module


    JKM475N-60HL4-V

    Item ID: 2498


    Mechanical Characteristics of Jinko 475W Tiger Neo Panel


    • Model: Tiger Neo N-type 60HL4-(V) 475 Watt  Mono-facial module
    • Pallet quantity: 35 units
    • Cell Type: N-type Mono-crystalline
    • No. of cells: 120 (6×20)
    • Dimensions:  1903×1134×30 mm
    • Weight: 24.2kg
    • Front Glass: 3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
    • Frame: Anodised Aluminium Alloy
    • Junction Box: IP68 Rated
    • Output Cables: TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length
    • Connector: JK03M/1B, Genuine MC4
    • Fire Rating: Class C

    Key features and benefits of Jinko Tiger Neo 475W Module



    SMBB Technology – Better light trapping and current collection to improve module power output and reliability.

    Hot 2.0 Technology – The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.

    PID Resistance – Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

    Enhanced Mechanical Load – Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

    Durability Against Extreme Environmental Conditions – High salt mist and ammonia resistance.



    LINEAR PERFORMANCE WARRANTY

    25 Year Linear Power Warranty

    30 Year Linear Power Warranty

    0.40% Annual Degradation Over 30 years
