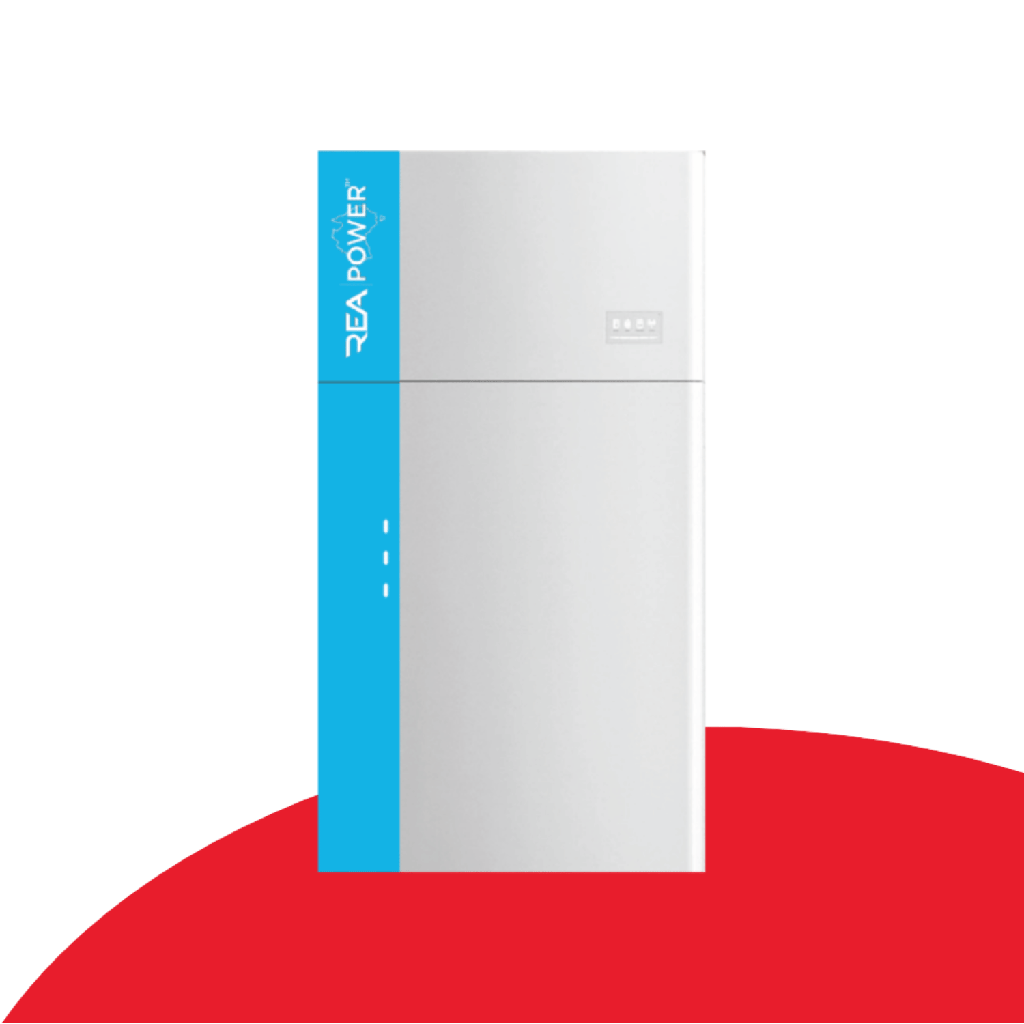

    REA 5kVA Powerbank (BMS for AC Coupled System)

    SKU: SMILE-G3-B5-INV

    The REA 5kVA Powerbank BMS is purpose-built for AC coupled energy storage systems, providing smart battery management and seamless integration with modular REA Powerbank batteries. Designed for installers working with residential and small commercial applications, it ensures safe, efficient, and reliable operation.

    With support for up to six battery modules in parallel and advanced LFP (LiFePO4) chemistry, the REA Powerbank system delivers long-lasting performance and high cycle life. Built to IEC safety standards and rated to IP65, it offers durability in diverse Australian conditions. The unit also features UPS capability, multiple communication options (Ethernet, WiFi, Modbus, API), and a 10-year full replacement warranty for peace of mind.

    Key Features

    • Smart Battery Management – Optimised performance for AC coupled systems.
    • Flexible Expansion – Supports 10.1–60.5 kWh capacity with parallel connection.
    • Reliable Performance – High cycle life (10,000 cycles) and 95% depth of discharge.
    • Certified & Durable – IEC/EMC compliance, IP65 protection, and robust design.
    • Installer-Friendly – Compact (610 × 212 × 366 mm), lightweight (19.5 kg), with simple connectivity.
    • Warranty – 10-year full replacement warranty.

    Basic Specifications

    • Nominal Output Power: 5kVA
    • Capacity Range: 10.1–60.5 kWh (95% DoD)
    • Battery Chemistry: LFP (LiFePO4)
    • Phase: Single-phase
    • Max Input Power: 10kW AC (on-grid)
    • UPS Backup: Supported
    • Certifications: IEC 62109, IEC 62040, EN 61000, VDE 4105, AS 4777.2
