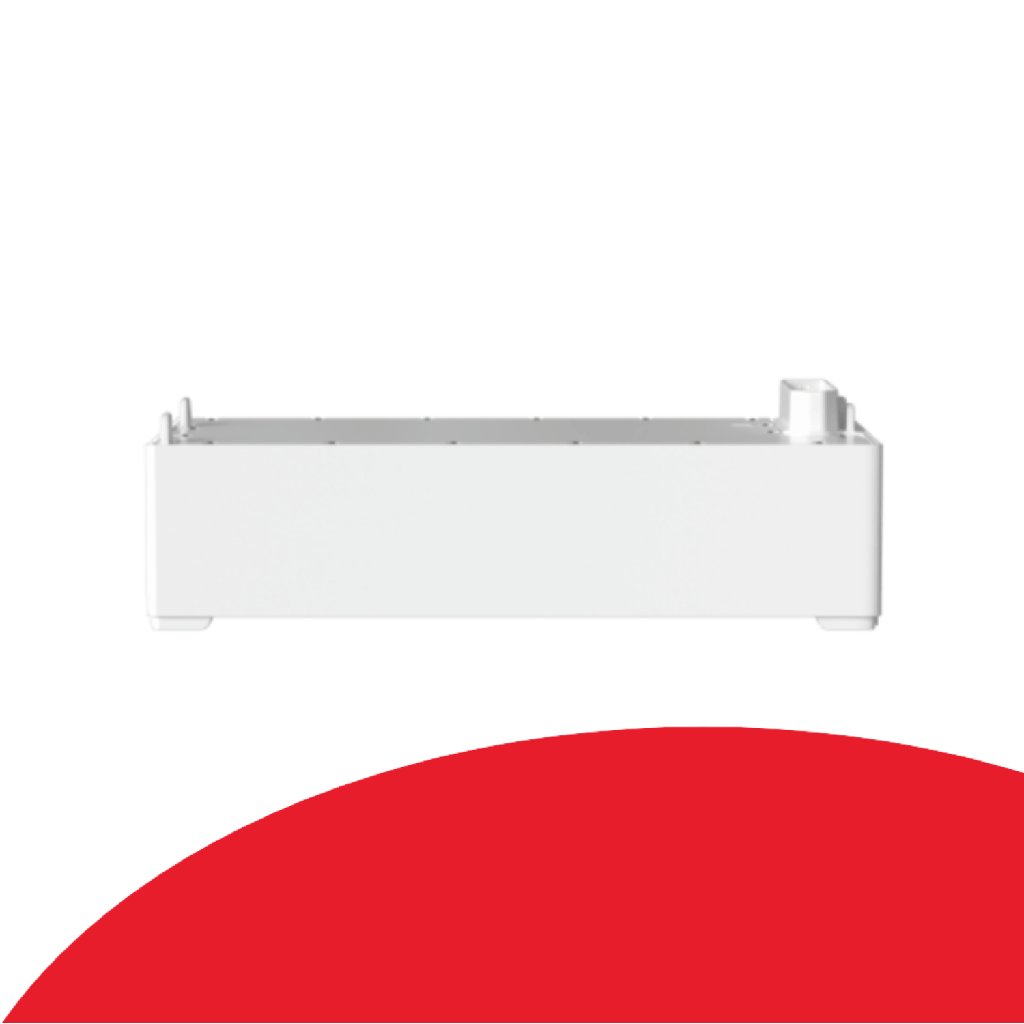

Sigenergy - SigenStack Battery Main Base 1.0C
Sigenergy – SigenStack Battery Main Base 1.0C
The Sigenergy SigenStack Main Base 1.0C is the foundation for building high-performance Sigenergy battery systems using 1.0C modules. It supports up to five SigenStack 1.0C battery modules and features integrated power and communication connections for fast, safe installation. Ideal for residential and commercial setups that require higher charge/discharge rates.
The 1.0C modules in the Sigenergy SigenStack system refer to higher-performance battery modules that support a charge and discharge rate of 1.0C — meaning they can charge or discharge their full capacity in one hour.
Basic Specifications - Sigenstack Battery Main Base 1.0C
- Product Name: Sigenergy – SigenStack Battery Main Base 1.0C
- Function: Supports stacking of up to 5 x 12.06 kWh 1.0C battery modules
- C-Rating: 1.0C (enables full charge/discharge in 1 hour)
- Installation: Floor-mounted
- Connectivity: Integrated power and communication ports
- Ingress Protection: IP66-rated for dust and water resistance
- Cooling Method: Smart air cooling
- Noise Level: <65 dB
- Compliance Standards: IEC/EN 60730-1, UN 38.3, IEC/EN 62619, IEC/EN 63056, IEC/EN 62040, UL9540A
Compatible Products - SigenStack
- Battery Modules: Sigenergy SigenStack BAT 12.0 (12.06 kWh, 1.0C-rated)
- Sub Base Units: Sigenergy SigenStack Battery Sub Base 1.0C (for expanding beyond 5 modules)
- Battery Controller: SigenStack BC M2-1C-BST
- Hybrid Inverters: Sigenergy C&I Hybrid Inverter Series (50 kW to 125 kW)
- System Covers: Sigenergy SigenStack Battery Cover
