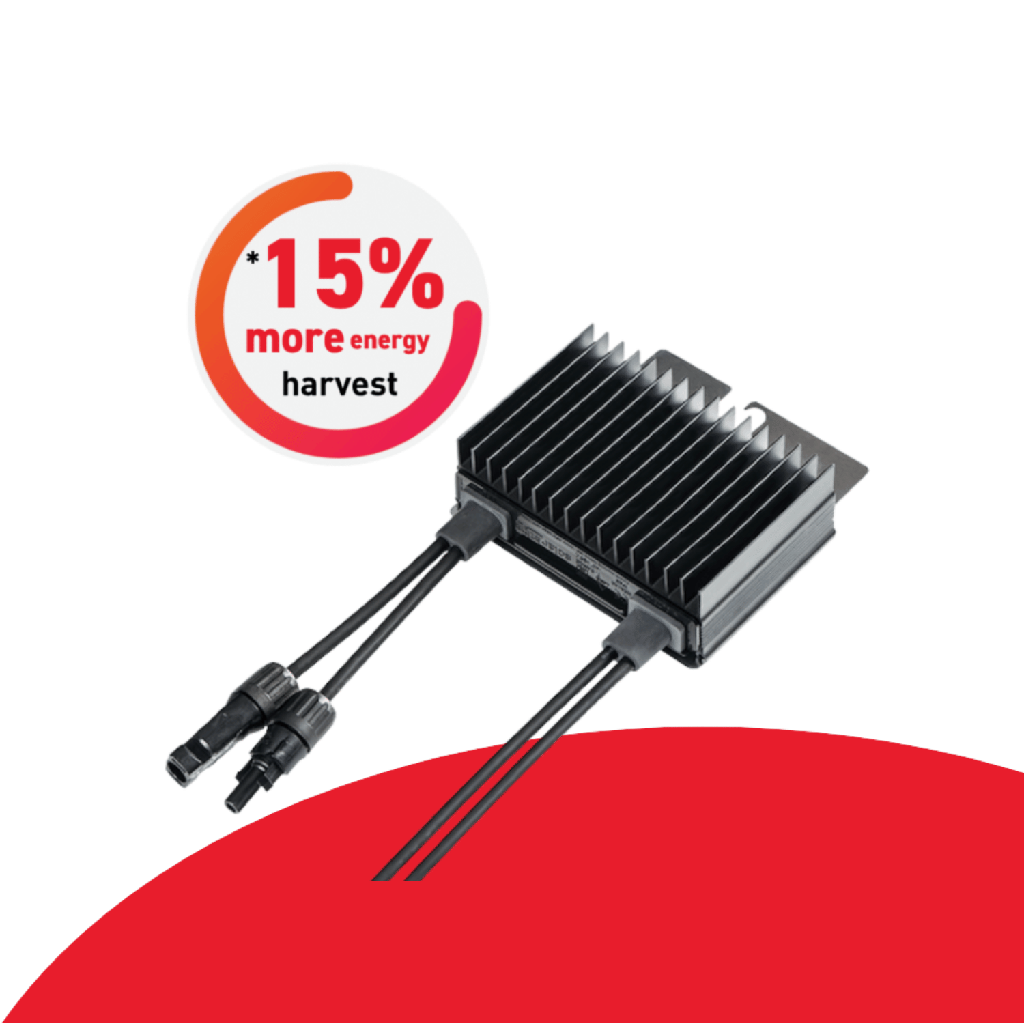

SolarEdge P1100 commercial power optimiser with 0.16m input (now 1200W/15A)

SolarEdge P1100 commercial power optimiser with 0.16m input (now 1200W/15A)

https://www.acsolarwarehouse.com/web/image/product.template/19811/image_1920?unique=b719a6d

Now suitable for up to 1200W/15A - SolarEdge waiver document with instructions available on request.


    This combination does not exist.

    Login or Register to view prices and place an order

    Volume pricing will be automatically applied for:

    3+ pallets and 10+ pallets


    P1100-4RM4MBT

    For series connection of 2 x high power or bifacial PV modules

      The SolarEdge power optimiser is a DC/DC converter which is connected by installers to each PV module or embedded by module manufacturers, replacing the traditional solar junction box. The SolarEdge power optimisers increase energy output from PV systems by constantly tracking the maximum power point (MPPT) of each module individually. Furthermore, the power optimisers monitor the performance of each module and communicate performance data to the SolarEdge monitoring portal for enhanced, cost-effective module-level maintenance. Each power optimiser is equipped with the unique SafeDC™ feature which automatically shuts down modules' DC voltage whenever the inverter or grid power is shut down. The MPPT per module allows for flexible installation design with multiple orientations, tilts and module types in the same string. When working with SolarEdge Inverters, SolarEdge power optimisers automatically maintain a fixed string voltage, allowing installers even greater flexibility with longer strings and strings of different lengths in order to design optimal PV systems. The SolarEdge power optimisers are compatible with c-Si and thin-film modules and have a 25 year warranty.

    Feature highlights of SolarEdge Power optimisers:

    • Per-module Maximum Power Point Tracking (MPPT)
    • Superior efficiency (99.5% peak efficiency, 98.8% weighted efficiency)
    • Mitigates all  types of modules mismatch-loss, from manufacturing tolerance to partial shading
    • Designed for extreme environmental conditions
    • 25 year reliability and warranty
    • Advanced, real-time performance measurement
    • Automatic module DC voltage shut-down for installer and firefighter safety
    • Independent optimisation technology (IndOP™) - allows operation with any inverter and requires no additional interface hardware
    • Embedded by module manufacturers, or connected by installers to c-Si and thin-film modules
    • Available with frames mounted in advance for quicker installation
