AC Board Classic - 160A Single Inverter

AC Board Classic - 160A Single Inverter

https://www.acsolarwarehouse.com/web/image/product.template/25280/image_1920?unique=6be1352

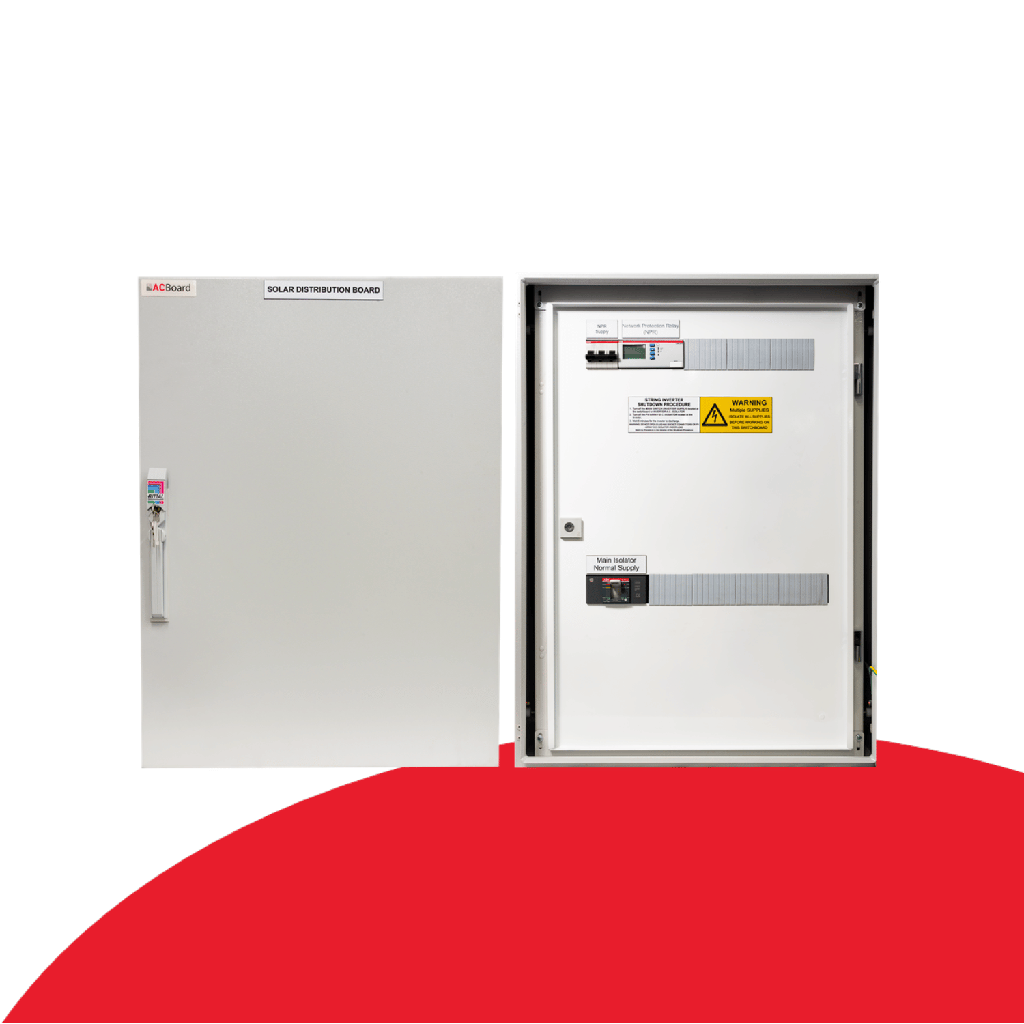

Secondary Network Protection and Solar Distribution board includes:
• Board Dimensions: 800H x 600W x 250D [mm]
• Board Colour: RAL 7035
• IP66
• Powder-coated steel with top and bottom gland plates
• Switchgear rated to 160A
• ABB Grid Protection Relay, pre-programmed to DNSP settings
• Fault rated to 18kA
• Fault current applies to entire assembly, complying with AS/NZS 61439.1:10
• For higher fault currents, please call ACSW to discuss
• 3-Point Locking System
• Pre-labelled with additional labels included for MSB
• Pre-wired and factory tested according to AS/NZS 61439.1: Clause 11
• Compliant to AS/NZS 3008.1.1:2017, AS/NZS 3000:2018, AS/NZS 5033:2021, AS/NZS 4777.1:2016, AS/NZS 61439.2:2016

- Available Modifications -
• Swap ABB Network Protection Relay for ComApp MainsPro (+$50)
• Install test links for injection testing (+$100)
• Install Generation Signalling Device (Queensland only) (+$100)
• Install 3P+N AC surge diversion (+$250)


    This combination does not exist.

    Login or Register to view prices and place an order

    Volume pricing will be automatically applied for:

    3+ pallets and 10+ pallets


    AC Board Classic - 160A Single Inverter Details


    SKU: ACBC-161U80

    Item ID: 3061

    Range: Classic (simplified functionality without compromising on performance or quality, just like our AC Board Pro Range)


    AC Board description


    This AC Board Classic 160A is a commercial solar switchboard that works with every inverter brand, and can handle up to 88kW inverter outputs. Please, contact our Engineering and Account Management team to discuss compatibility and system design.

    AC Boards are essential components of a solar power systems designed to manage and distribute the electricity generated by solar panels. They include all necessary electrical components for installing single-phase commercial solar systems.

    Many solar installers across Australia and New Zealand consider them the fastest and easiest solution for commercial solar system installations.

    The unit comes fully labeled, with additional labels for the main switchboard.

    The grid protection relay (GPR) settings are pre-configured to comply with Australian Standards and utility requirements.


    Key Features and Benefits Commercial AC Board


    • Simplified Installation: Pre-configured settings and fully labeled components make the installation process quicker and easier, saving time and reducing errors.
    • Efficiency: Efficiently manages and distributes electricity, optimising the performance of the solar power system and ensuring reliable operation.
    • Compliance: Pre-configured grid protection relay (GPR) settings ensure compliance with Australian standards and utility requirements.
    • Uniform looks across all installs.
    • Ideal for commercial solar systems with up to one inverter output of up to 88kW.
    • Compatible with any inverter brand.
    • Same high quality and trusted components such as Rittal enclosures and ABB Switchgear.
    • Designed and certified by Registered Professional Engineers.
    • Standard designs & custom solutions available.
    • Manufactured in-house by AC Solar Warehouse, cutting out unnecessary steps in the supply chain, we ensure that you receive high-quality products at the best possible prices.


    Some extras you might want to include


    For little more than the cost of the components themselves, this solar switchboard saves valuable time on site, eliminates wiring problems and speeds up commissioning. If you still would like to customise it more, here are some features that we you may want to add:

    • Swap ABB Network Protection Relay for ComApp MainsPro (+$50)
    • Install test links for injection testing (+$100)
    • Install Generation Signalling Device (Queensland only) (+$100)
    • Install 3P+N AC surge diversion (+$250)


    Mechanical Specifications


    • Board Dimensions: 800H x 600W x 250D [mm]
    • Board Colour: RAL 7035
    • IP66
    • Powder-coated steel with top and bottom gland plates
    • Switchgear rated to 160A
    • ABB Grid Protection Relay, pre-programmed to DNSP settings
    • Fault rated to 18.7kA
    • Fault current applies to entire assembly, complying with AS/NZS 61439.1:10
    • For higher fault currents, please call ACSW to discuss
    • 3-Point Locking System
    • Pre-labelled with additional labels included for MSB
    • Pre-wired and factory tested according to AS/NZS 61439.1: Clause 11
    • Compliant to AS/NZS 3008.1.1:2017, AS/NZS 3000:2018, AS/NZS 5033:2021, AS/NZS 4777.1:2016, AS/NZS 61439.2:2016
