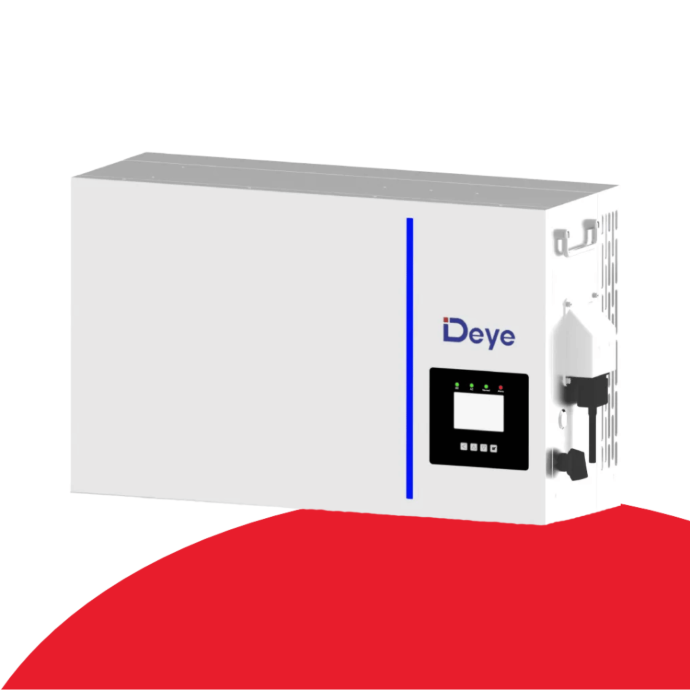

    Deye AI-W5.1-B-ESS - Inverter 12kW Three Phase

    SKU: AI-W5.1-12P3-AU-B

    The Deye AI-W5.1-B-ESS is a high-capacity 12kW three-phase hybrid inverter designed as the intelligent core for the Spring Series energy storage system. This sophisticated all-in-one solution integrates a powerful three-phase inverter with advanced battery management to provide a sleek, floor-mounted system for modern residential and commercial applications. Engineered for maximum energy security, it features an ultra-fast 4ms switchover time from grid to backup power, ensuring uninterrupted supply for critical loads. With built-in support for peak-shaving, smart load management, and AC coupling, this 12kW unit allows for significant energy optimization and is easily managed via the Deye Cloud platform.

    Key Features Deye AI-W5.1-B-ESS Inverter 12kW:

    • High Three-Phase Power: Delivers 12kW of rated AC output, making it ideal for large homes and light commercial sites with three-phase power requirements.
    • Ultra-Fast Backup Transition: Features a 4ms seamless switchover from grid to backup power for superior energy security during outages.
    • Intelligent Energy Optimization: Supports peak-shaving, smart load management, and time-of-use strategies to maximize self-consumption and lower electricity bills.
    • Exceptional Efficiency: Achieves a maximum efficiency of 97.6% with an MPPT efficiency of over 99% for optimized solar harvesting.
    • Robust Load Handling: Provides peak power of up to 2 times the rated output for 10 seconds in off-grid mode to handle high startup currents.
    • All-Weather Reliability: IP65-rated protection ensures durable performance in both indoor and outdoor installation environments.
    • Advanced Management: Full system control, one-click diagnostics, and remote firmware upgrades through the Deye Cloud app, PC, or touch display.

    Deye AI-W5.1-B-ESS Inverter 12kW Basic Specs:

    • Rated AC Output Active Power: 12,000 W
    • Maximum PV Access Power: 24,000 W
    • Maximum DC Input Power: 18,000 W
    • Number of MPPT Trackers: 2 (supporting 2+1 string configuration)
    • Maximum Charging/Discharging Current: 240 A
    • Battery Compatibility: Low-voltage Lithium-ion (40–60V)
    • Inverter Efficiency: 97.6% (Max) / 97.0% (Euro)
    • Protection Rating: IP65
    • Dimensions (W x H x D): 720 x 440 x 254 mm
    • Weight: 39.75 kg
    • Warranty: 10 years

    What’s Included:

    • 1 x Deye AI-W5.1-12P3-AU-B 12kW Three Phase Hybrid Inverter
    • Integrated DC Bus and parallel interface
    • Mounting hardware and professional connection kit
    • Access to Deye Cloud energy management platform
