AC Board Enphase - 160A 1-8 Circuits

https://www.acsolarwarehouse.com/web/image/product.template/19779/image_1920?unique=4c5f3b3

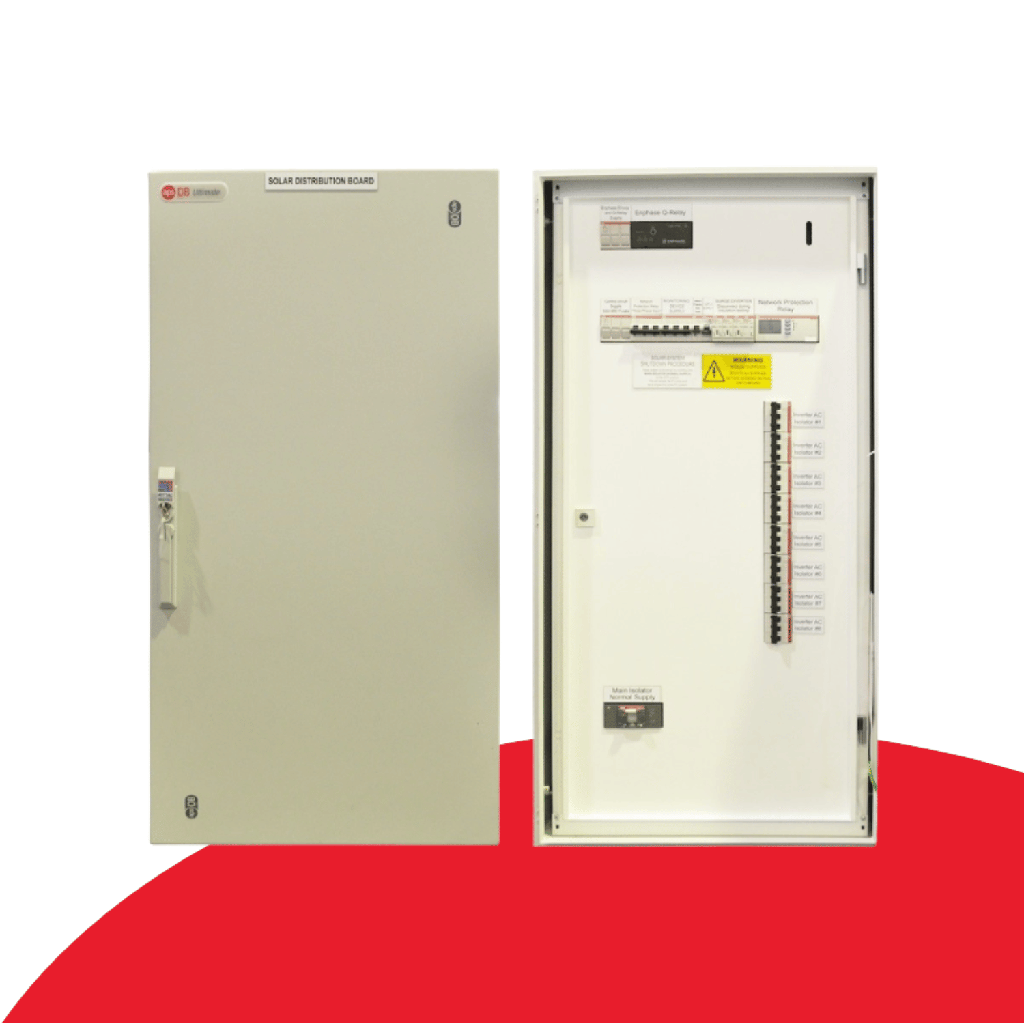

Secondary Network Protection and Solar Distribution board includes:
• Board Dimensions: 1200H x 800W x 400D [mm]
• Board Colour: RAL 7035
• IP66
• Powder-coated steel with top and bottom gland plates
• Switchgear rated to 160A
• ABB Grid Protection Relay, pre-programmed to DNSP settings
• Fault rated to 14.5kA
• Fault current applies to entire assembly, complying with AS/NZS 61439.1:10
• For higher fault currents, please call ACSW to discuss
• Power Line Communication phase filtering
• Enphase IQ Gateway and Q-Relay Protection
• 3-Point Locking System
• Pre-labelled with additional labels included for MSB
• Pre-wired and factory tested according to AS/NZS 61439.1: Clause 11
• Compliant to AS/NZS 3008.1.1:2017, AS/NZS 3000:2018, AS/NZS 5033:2021, AS/NZS 4777.1:2016, AS/NZS 61439.2:2016

- Available Modifications -
• Swap ABB Network Protection Relay for ComApp MainsPro (+$50)
• Install test links for injection testing (+$100)
• Install Generation Signalling Device (Queensland only) (+$100)

    This combination does not exist.

    Login or Register to view prices and place an order

    Details

    Item ID: 2257 SKU: ACB-SNP-B8V2

    100kW Commercial Enphase switchboard with Grid Protection Relay (GPR)

    Ideal for commercial solar systems using Enphase Microinverters.   Not suitable for installation in Queensland.  Please refer to the Queensland 100kW Enphase AC Board



    Solar Distribution Board designed for commercial Enphase systems up to 92kW (up to 252 microinverters) - Contact us for other system sizes

    Fully labelled with additional labels for main switchboard Grid protection relay (GPR) settings pre-configured to meet Australian Standards and utility requirements Specifications Secondary network protection & solar distribution board includes the following:
    • Metal enclosure, 1200(H) x 600(W) x 250(D) mm
    • Powder-coated steel with top and bottom gland plates
    • IP 66 rated for outdoor installation
    • 3 point lockable handle
    • 160A MCCB main switch
    • 24 way 3 phase chassis
    • 1 x 160A N/O contactors
    • 6A internal GPO
    • Enphase IQ gateway
    • Enphase IQ relay
    • Enphase 250A Line Communications Filter
    • 6 x 400A CT's (3 for solar pre-wired and additional 3 for main switchboard)
    • 3P+N Surge protection
    • Spare 3 phase 6A MCB
    • Secondary network protection relay (preprogrammed to utility requirements)
    • Pre-labelled with additional labels included for main switchboard
    • All components pre-wired and checked with 2-step QA process
    • Suitable for a maximum fault current 10kA
    • Compliant to AS/NZS 3008.1.1:2017, AS/NZS 3000:2018, AS/NZS 5033:2014, AS/NZS 4777.1:2016, AS/NZS 61439.2:2016

    The fastest and easiest way to install commercial Enphase solar systems

    AC Solar Warehouse Commercial Solar Switchboards accommodate all of the electrical hardware required to install three-phase Enphase solar systems. This solar switchboard saves valuable time on site, eliminates wiring problems and speeds up commissioning.
    • Designed and certified by Registered Professional Engineers with CEC design accreditation and over 2 decades of commercial solar system design experience
    • Designed to meet the specific faults levels at each site.
    • Designed to meet distribution utilities network protection requirements
    • Simplifies engineering sign-off for solar projects.
    • Compliant with Australian and New Zealand standards
    • Compliant with appropriate electricity utility standards (ie optimum secondary network protection and cabling solution)
    • Indoor or outdoor installation
    • Temperature resistant enclosures to extend the life of electronics in the switchboard
    • Completely pre-wired and tested
    • Pre-labelled to AS/NZS5033 and AS/NZS4777 requirements with labels for mainboard also included


    Professional Engineering Services

    AC Solar Warehouse have experienced in-house Registered Professional Engineers for design, test and inspection reports required by selected utilities for systems above 30kVA. (costs apply so contact us for pricing)
    • Schematic diagrams
    • Design Certification Reports (DCR)
    • Compliance Assessment Reports (CAR)
    • Power Quality Testing
    We prepare fault level calculations which vary from site-to-site and determine the network protection requirements to suit the specific distribution utility's requirements.

    Professional engineering support



    Switchboards designed for professional solar installers who want to save time and money

      Below is what installers are saying about AC Solar Warehouse Solar Distribution Boards? "Hands down the easiest way to install a solar system" "I'll never install another solar system without using one of these boards" "Now all our jobs look the same, and look good - regardless of the installer we use" "How good are the distribution boards by AC Solar Warehouse.  Making life easier for the boys!" "Ducks nuts" "Love them, so tidy"   If you're not using one of these boards your commercial solar installs are taking longer than they need to.  Try one on your next job and find out for yourself!
