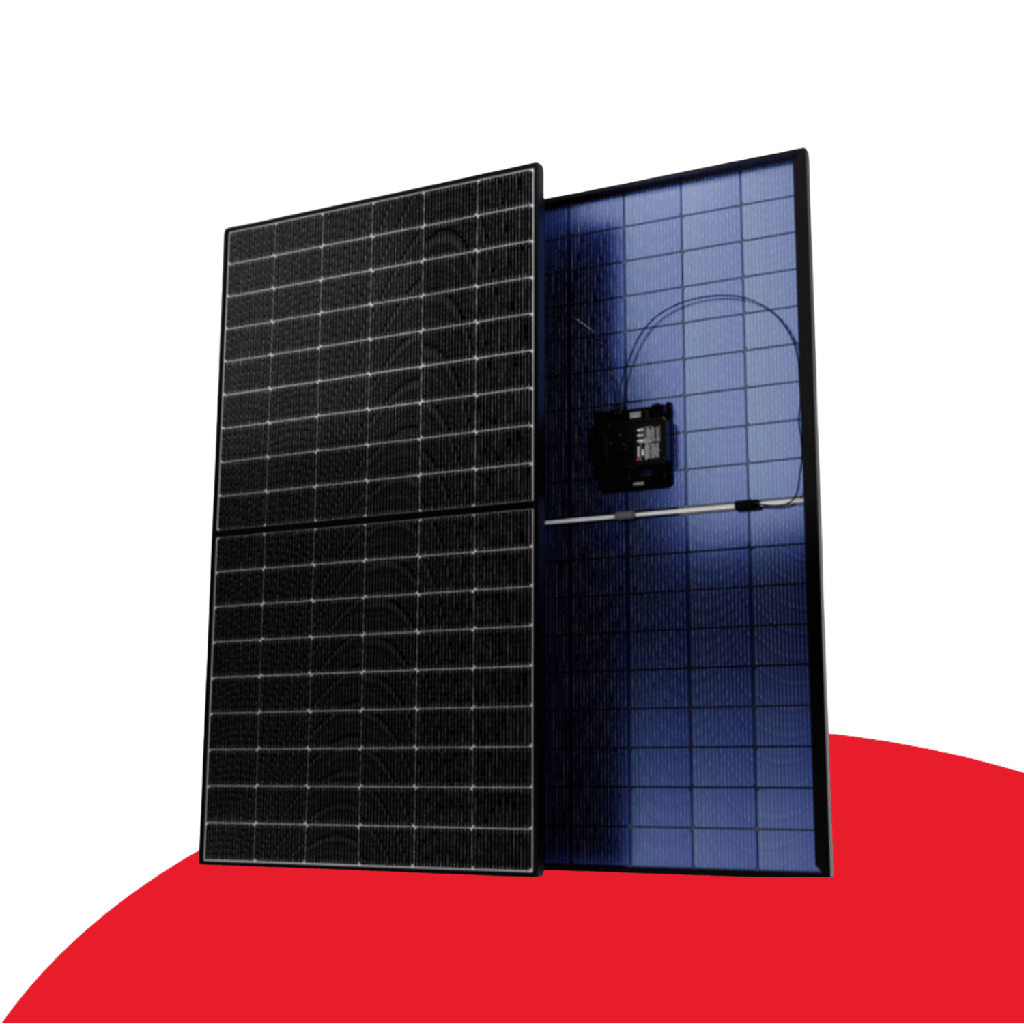

REA Power Fusion 2 460W DC module

REA Power Fusion 2 460W DC Module

SKU: REA-HD108N-460 DC

 The REA Power Fusion 2 460W DC module combines premium efficiency with robust Australian-engineered quality, designed for installers who demand performance and reliability. Featuring cutting-edge Zero Busbar (0BB) HJT technology, this dual-glass module achieves up to 23% efficiency while minimising microcracks and mechanical stress. Its bifacial design allows for higher energy generation through rear-side light capture, maximising output in diverse installation environments.

Built for long-term performance, the REA Fusion 2 includes a 30-year product and performance warranty, delivering exceptional durability in Australia’s harsh conditions. With low degradation rates, advanced light conversion encapsulation, and flexible silicon wafers, this panel is an ideal choice for residential, commercial, and utility-scale solar systems.

Key Features and Benefits

• Zero Busbar HJT Technology – Improves efficiency and mechanical strength for greater long-term reliability.
• High Module Efficiency (23%) – Maximises energy output per square metre.
• Dual Glass Design – Enhances durability and resistance to environmental stress.
• Bifacial Generation – Captures reflected light to deliver up to 30% extra energy yield.
• Superior Low-Light and Temperature Performance – Stable output across variable weather conditions.
• 30-Year Product and Performance Warranty – Ensures long-lasting power and minimal degradation.
• Australian-Engineered Quality – Designed and supported locally for reliable installation outcomes.

Basic Specifications

• Power Output: 460W
• Efficiency: 23.0%
• Module Type: HJT Dual Glass, 0BB
• Cell Count: 96 cells
• Dimensions: 1762 × 1134 × 30 mm
• Weight: 21.8 kg
• Operating Temperature: -40°C to +85°C
• System Voltage: 1500V DC
• Max Series Fuse Rating: 30A
• Temperature Coefficient (Pmax): -0.24%/°C

Certifications and Warranty

• Product Warranty: 30 years
• Performance Warranty: 30 years (1.0% first year, 0.3% annual)
• Safety Class: Class II
• Fire Rating: Class C
• Certified to: IEC 61215, IEC 61730
