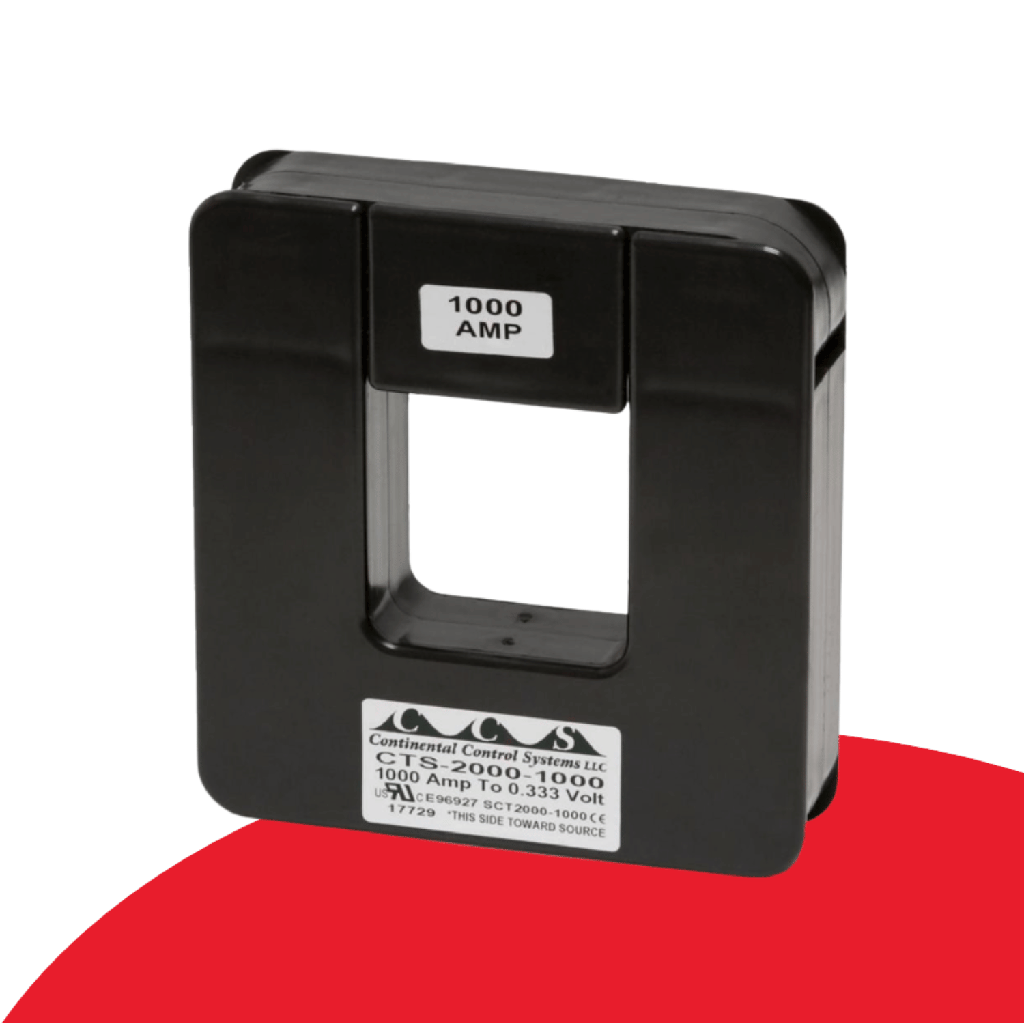

SolarEdge 1000A Split-core CT

SolarEdge 1000A Split-core CT

https://www.acsolarwarehouse.com/web/image/product.template/19869/image_1920?unique=b719a6d

    This combination does not exist.

    Login or Register to view prices and place an order

    Volume pricing will be automatically applied for:

    3+ pallets and 10+ pallets


    SECT-SPL-1000A-A

    The SolarEdge 1000A Current Transformers (CT) are used with the SolarEdge Modbus Meter to monitor energy usage.
    • Safe: burden resistor built-in, 333 mVac voltage output at rated full scale current, no shorting blocks needed
    • Accuracy ±1% from 10% to 100% of rated current
    • Line frequency: 50-60 Hz
    • Phase angle <2° degrees at 50% of rated current (valid for 70 A or higher)
    • Lead wires 2.438m. long, 600 Vac rated, black and white, twisted-pair
    • No exposed metal

    Physical Dimensions

    • Internal 52 x 52mm
    • External 125 x 120mm
    • Width 29.6mm

    This is a spilt core CT that will allow you to easily install without having to disconnect existing cabling. Click here to find out how to extend wiring of CT's.
