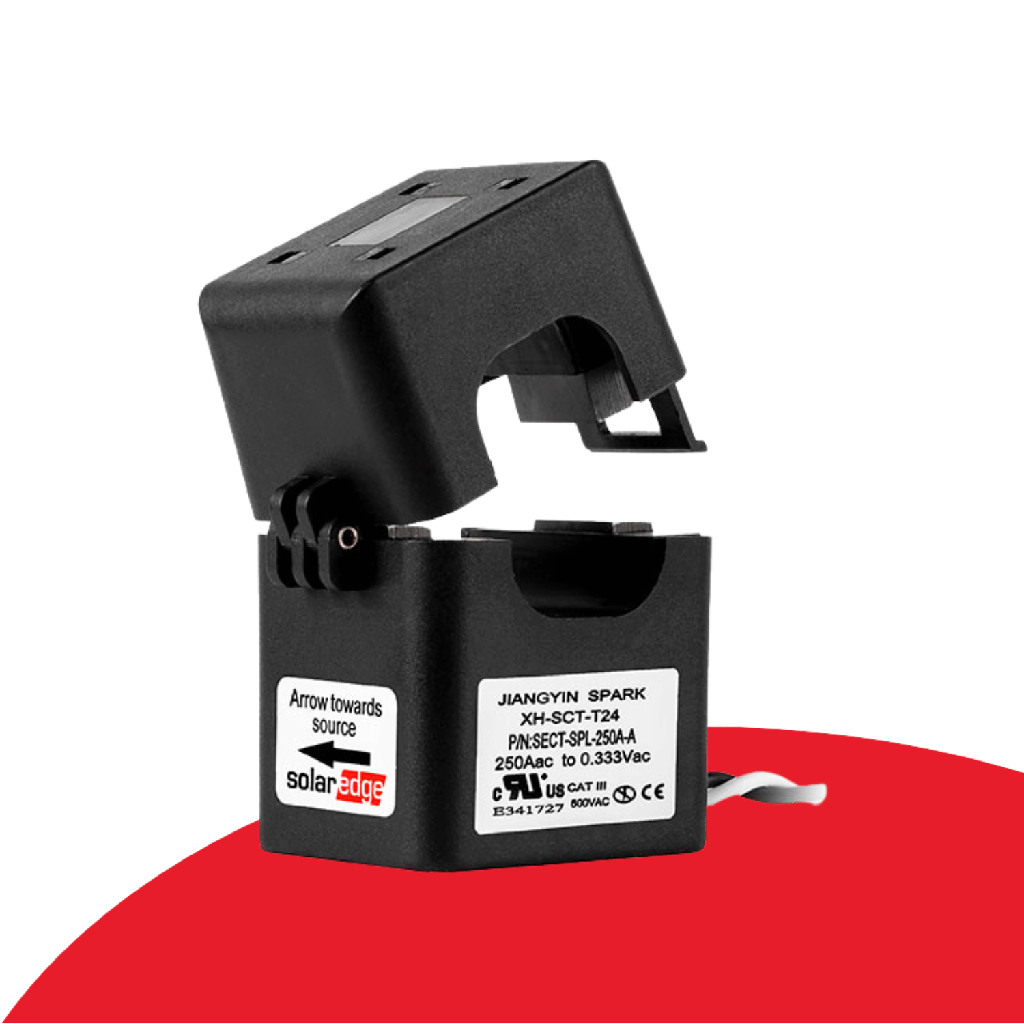

SolarEdge 250A Split-core CT

SolarEdge 250A Split-core CT

https://www.acsolarwarehouse.com/web/image/product.template/19868/image_1920?unique=bbe1ed4

Internal cable space: 25mm x 24mm
Outer dimensions: 65mm x 46 x 41mm
Lead length: 1.05m


    This combination does not exist.

    Login or Register to view prices and place an order

    Volume pricing will be automatically applied for:

    1+ pallets, 4+ pallets and 10+ pallets


    SECT-SPL-250A-A

    The SolarEdge 250A Current Transformers (CT) are used with the SolarEdge Modbus Meter to monitor energy usage.
    • Safe: burden resistor built-in, 333 mVac voltage output at rated full scale current, no shorting blocks needed
    • Accuracy ±1% from 10% to 100% of rated current
    • Line frequency: 50-60 Hz
    • Phase angle <2° degrees at 50% of rated current (valid for 70 A or higher)
    • Lead wires 2.438m. long, 600 Vac rated, black and white, twisted-pair
    • No exposed metal

    Physical Dimensions

    • Internal 24 x 25mm
    • External 65.4 x 46.2mm
    • Width 40.9mm


    This is a spilt core CT that will allow you to easily install without having to disconnect existing cabling. Click here to find out how to extend wiring of CT's.
