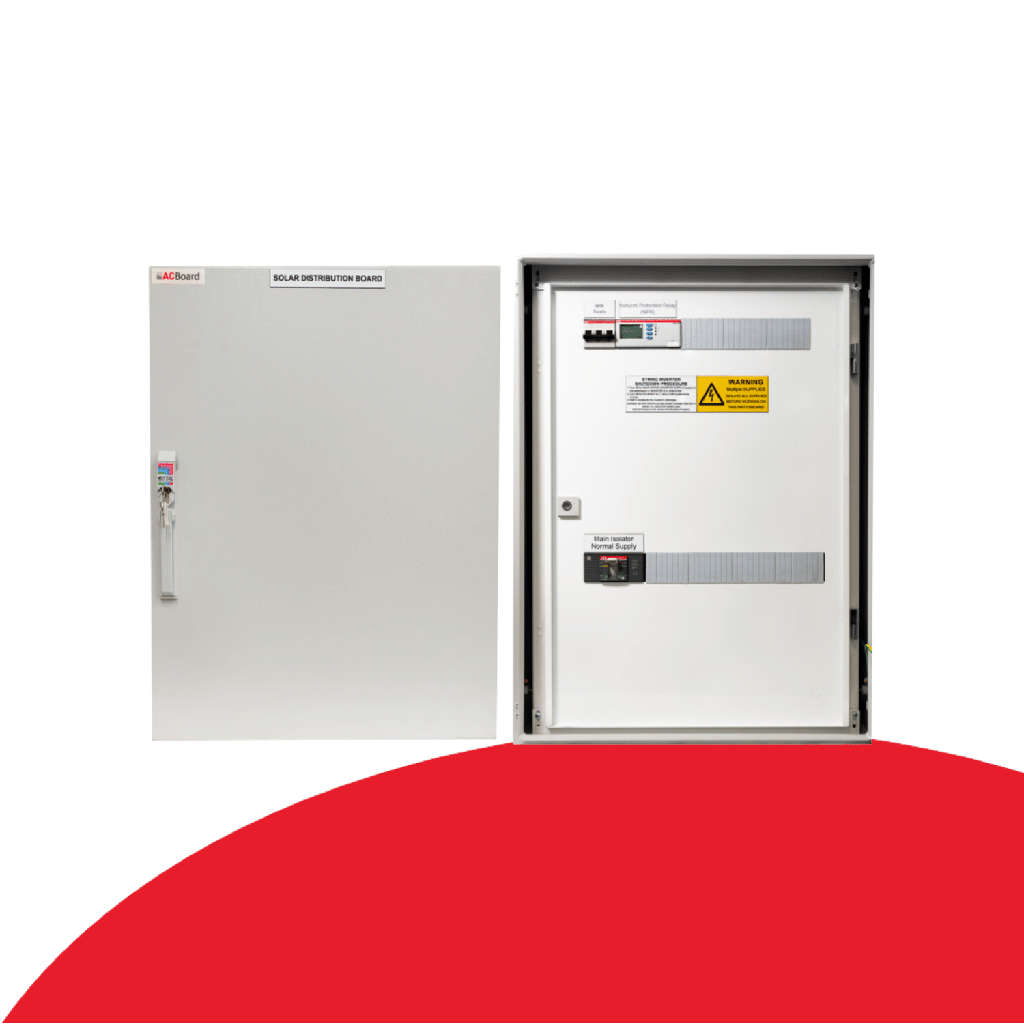

AC Board Classic - 100A Single Inverter

https://www.acsolarwarehouse.com/web/image/product.template/25224/image_1920?unique=661b414

Secondary Network Protection and Solar Distribution board includes:
• Board Dimensions: 800H x 600W x 250D
• IP66
• Switchgear rated to 100A
• ABB Grid Protection Relay, pre-programmed to DNSP settings
• Fault rated to 33.4kA
• Fault current applies to entire assembly, complying with AS/NZS 61439.1:10
• For higher fault currents, please call ACSW to discuss
• 3-Point Locking System
• Pre-labelled with additional labels included for MSB
• Pre-wired and factory tested according to AS/NZS 61439.1: Clause 11
• Compliant to AS/NZS 3008.1.1:2017, AS/NZS 3000:2018, AS/NZS 5033:2021, AS/NZS 4777.1:2016, AS/NZS 61439.2:2016

- Available Modifications -
• Swap ABB Network Protection Relay for ComApp MainsPro (+$50)
• Install test links for injection testing (+$100)
• Install Generation Signalling Device (Queensland only) (+$100)
• Install 3P+N AC surge diversion (+$250)

    This combination does not exist.

    Login or Register to view prices and place an order

    AC Board Classic - 100A Single Inverter Details


    SKU: ACBC-101U80 (replaces ACB-SNP-B2)

    Item ID: 3005 (replaces Item ID 1885)


    AC Board Classic 100A Single Inverter Product Description


    This AC Board is a commercial solar distribution board suitable for most 3-phase commercial inverter brands.

    This distribution board offers simplified functionality without compromising on performance or quality, just like our AC Board Pro range. Designed for commercial solar systems, it supports up to 55kW of inverter outputs.

    These Commercial Solar distribution boards accommodate all of the electrical hardware required to install three-phase commercial solar systems. It’s considered the fastest and easiest way to install commercial solar systems by many solar installers around Australia and New Zealand.

    It comes fully labeled with additional labels for main switchboard

    Grid protection relay (GPR) settings pre-configured to meet Australian Standards and utility requirements


    Key features and Benefits of AC Board Classic 100A Single Inverter


    • Ideal for commercial solar systems with a combined inverter output of up to 55kW.
    • Compatible with any inverter brand.
    • Same high quality and trusted components such as Rittal enclosures and ABB/Siemens Switchgear.
    • Fully labeled with additional labels for the main switchboard.
    • Grid protection relay (GPR) settings pre-configured to meet Australian and New Zealand Standards and utility requirements.
    • Designed and certified by Registered Professional Engineers.
    • Save valuable time on site by eliminating wiring problems.
    • Uniform looks across all installs.
    • Standard designs & custom solutions available.
    • Manufactured in-house by AC Solar Warehouse, cutting out unnecessary steps in the supply chain, we ensure that you receive high-quality products at the best possible prices.


    Some optional extras you might want to include


    For little more than the cost of the components themselves, this solar switchboard saves valuable time on site, eliminates wiring problems and speeds up commissioning. If you wish to further customise your switchboard, consider adding the following features:

    • Swap ABB Network Protection Relay for ComApp MainsPro (+$50)
    • Install test links for injection testing (+$100)
    • Install Generation Signaling Device (Queensland only) (+$100)
    • Install 3P+N AC surge diversion (+$250)

    For inverter compatibility, contact our team.

    We have SolarEdge commercial inverters, SMA commercial inverters (Sunny Tripower X 15kW, 20 kW and 25kW) and Sungrow commercial inverters


    Mechanical specifications


    • Enclosure material: Powder coated mild metal
    • Enclosure dimensions: 600W x 800H x 250D (mm)
    • IP rating: IP 66
    • Weight: 48kg
    • Cable entries: Gland plate top + bottom
    • Labels: Pre-labelled to meet AS/NZS 4777.1:2016 & AS/NZS 5033:2021 with additional labels for main board.
    • Color: Grey (RAL7035)
    • Operating temperature: -25°C to +40°C Ambient
